Step by step guide to speedhack your Tenways CGO800s
There are two ways to install the Smoothway speedbox: a quick and easy 1-minute setup on your handlebar or a more secure, theft-resistant installation under the crank, which takes about 15 minutes. Choose the option that works best for you!
Easy 1 minute handlebar installation
The handlebar installation is the simplest method. If you don’t leave your bike in public areas often, this is a great option. Just keep in mind, it’s easier for thieves to tamper with it.
Step 1
Preparation
Make sure your Tenways CGO800s is turned off.
Step 2
Disconnect the cables from your display
Don’t worry, it might take a little force, but just gently pull the cables out. It’s normal, so no need to be scared!
Step 3
Connect the Smoothway Speedbox
There’s only one way to connect it. The male connector of the speedbox goes into the female connector on the bike. Then, the male connector from the bike plugs into the female connector on the speedbox. It's simple, just follow the arrows on the connectors to line them up the right way!
Use some small cable ties (or tyraps, tie wraps... whatever you like to call them! 😉) to secure everything in place.
Step 4
Activating the speedbox
To activate the speedbox, turn on your bike. Once it's powered on, press and hold the down arrow button on your display to activate walk assist mode. The speedbox is now activated! Enjoy your faster rides ;).
Note: Walk mode will no longer work with a speedbox installed, and you’ll need to activate the speedbox every time you turn on your bike.
15 minute under-the-crank installation
This straightforward 8-step process will show you how to discreetly and securely fit the speedmodule under your CGO800s crank.
Step 1
Preparation
Make sure your Tenways CGO800s is turned off.
Step 2
Access the cables

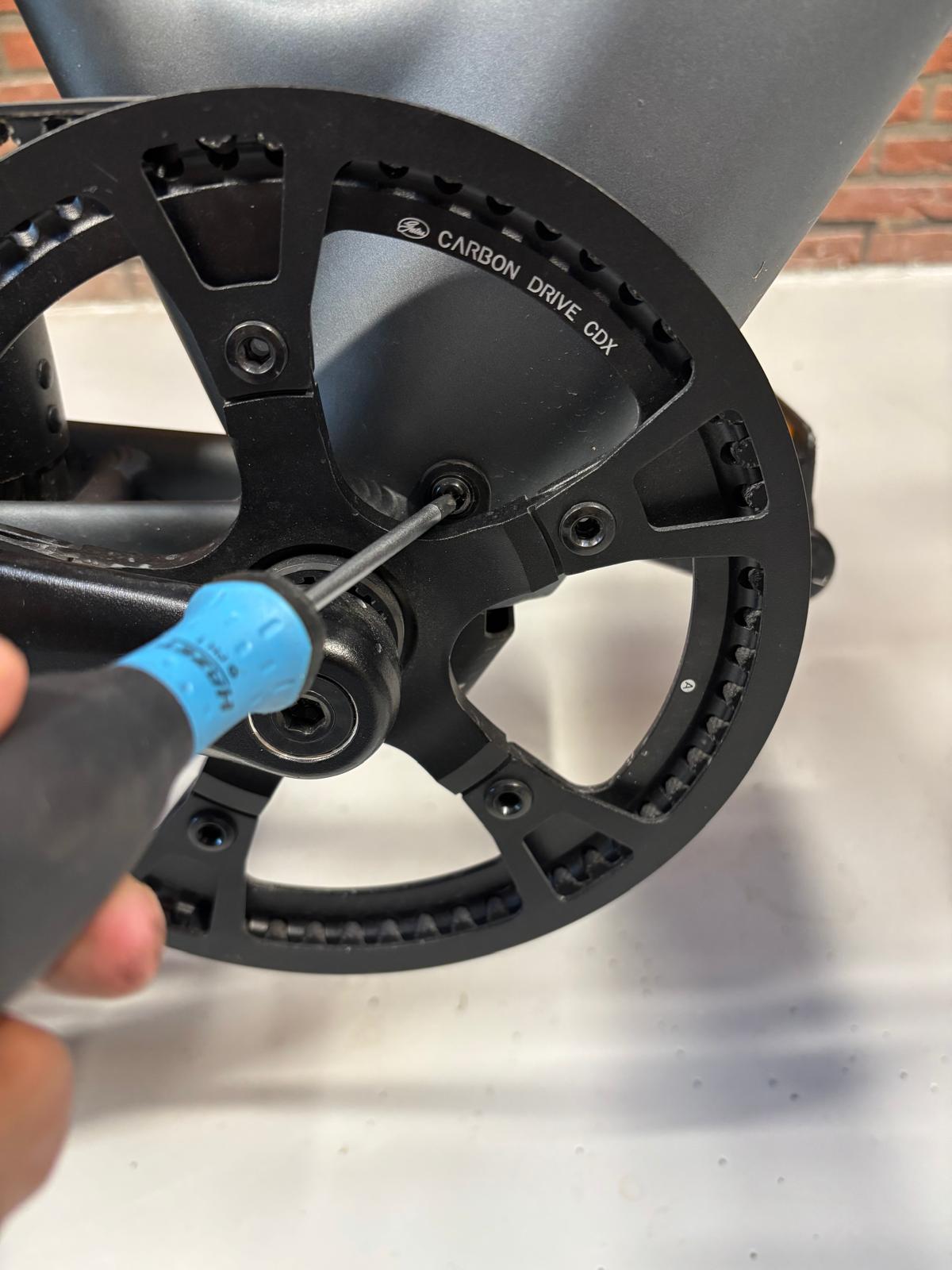

Unscrew the cover underneath the crankcase on both sides.
Step 3
Remove the cover

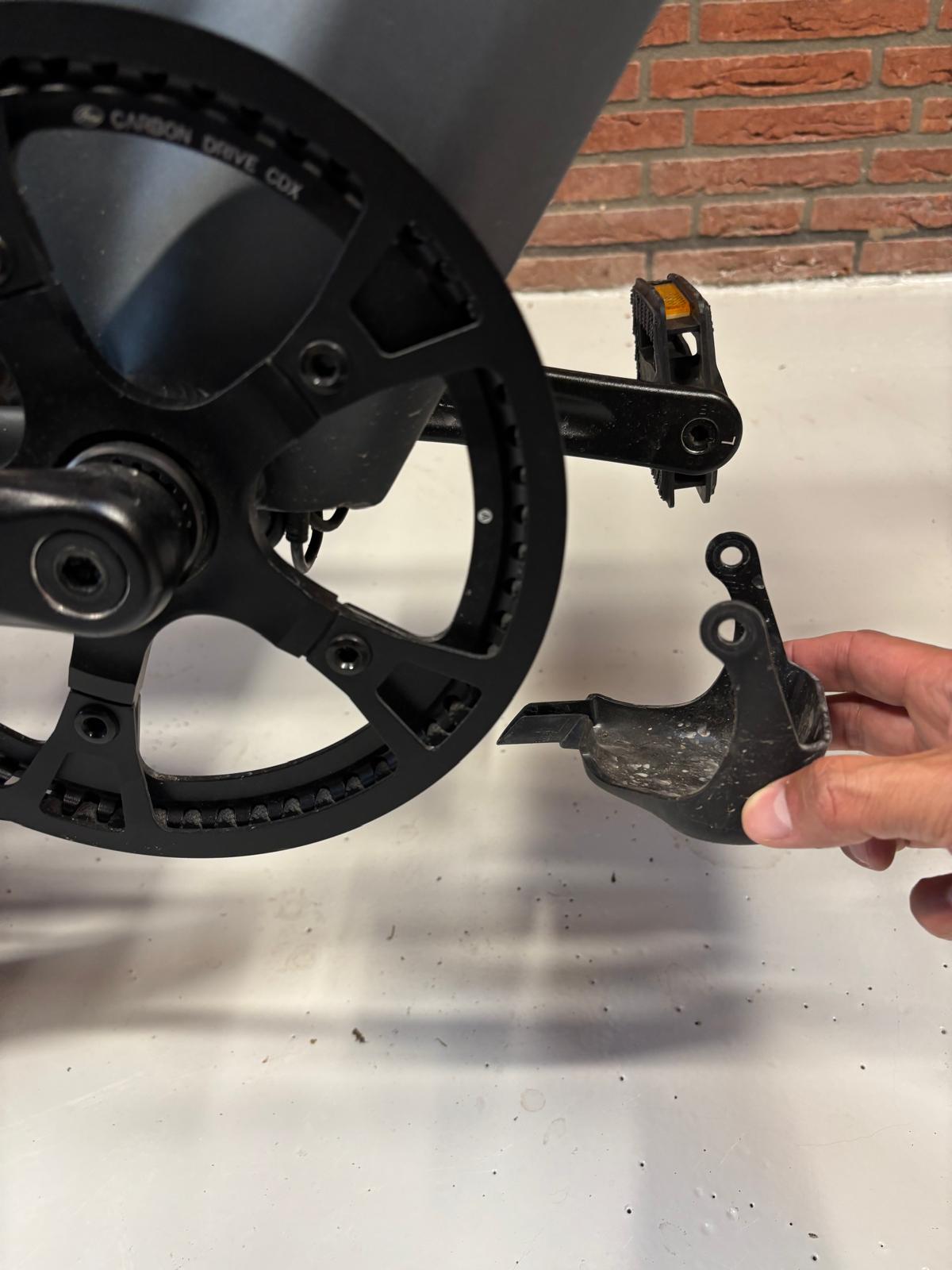

Remove the cover by pulling it forward.
Step 4
Prepare the cables

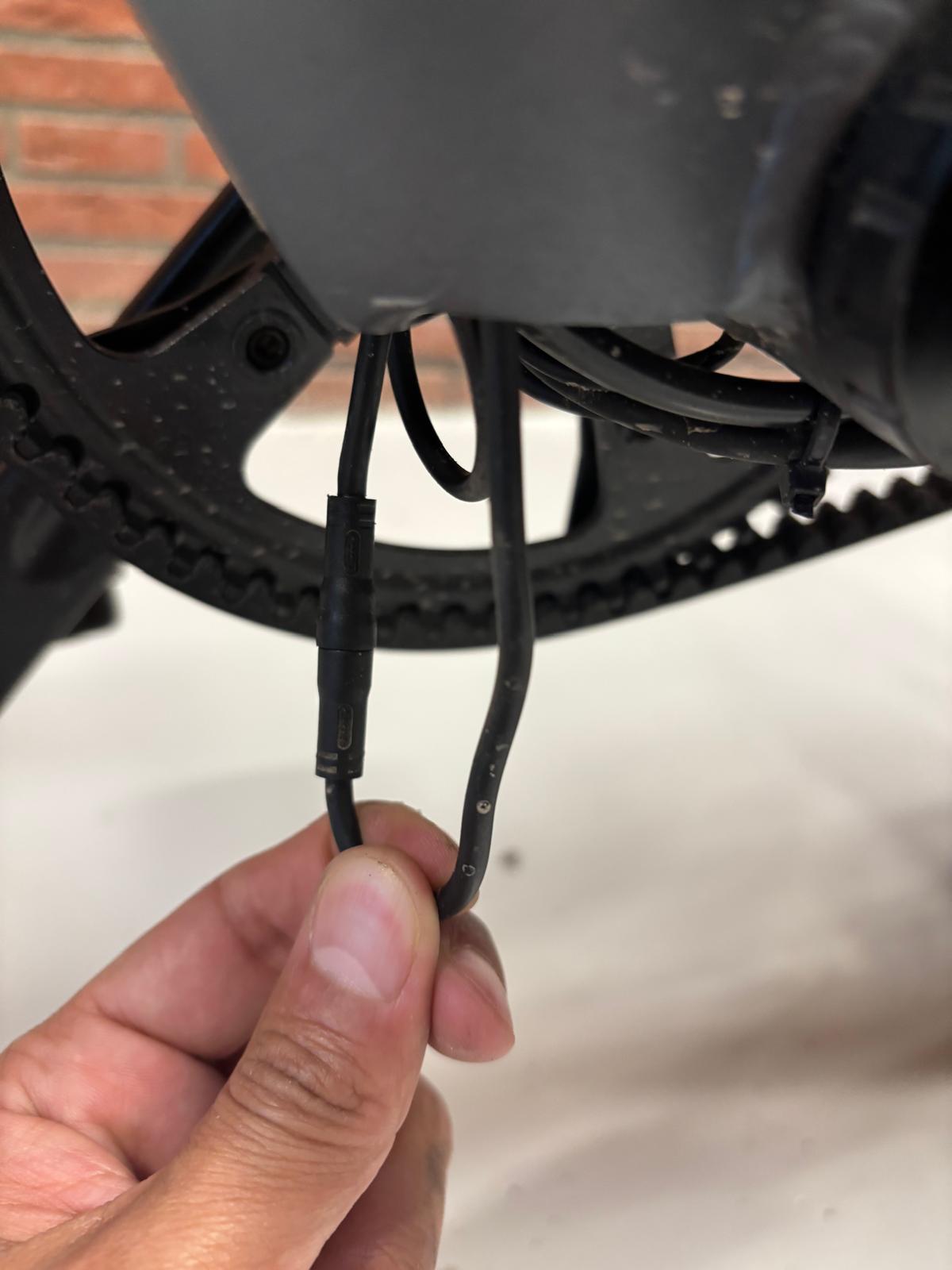

You'll need to disconnect a specific cable for the Speedbox. Look for the connector that is black inside with the same pins and unplug that one. Make sure you leave the ribbed torque sensor cable connected.
Step 5
Connect the Speedbox

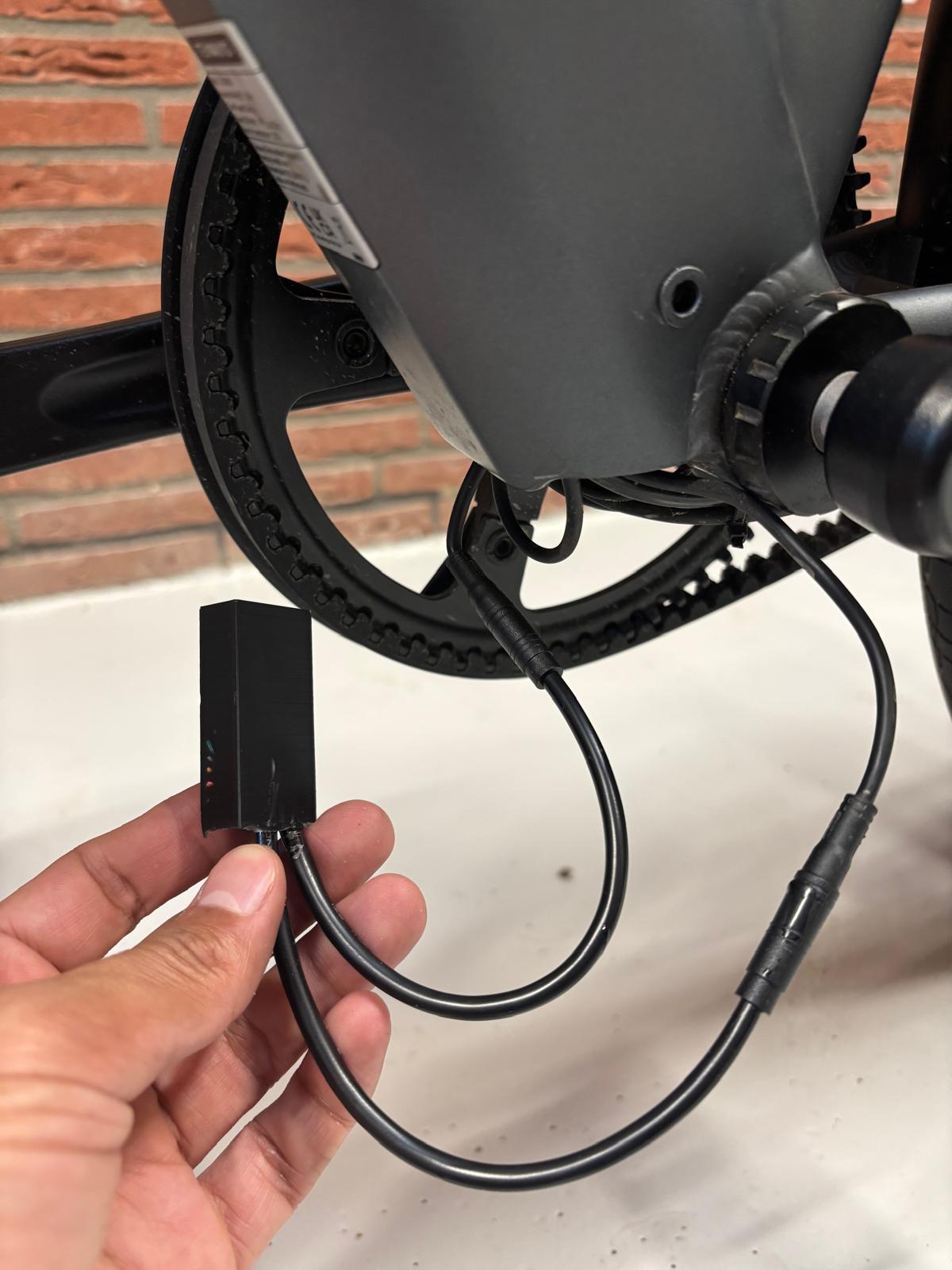

Connect the Speedbox in line with the arrows of the cable you just disconnected.
Step 6
Position the Speedbox

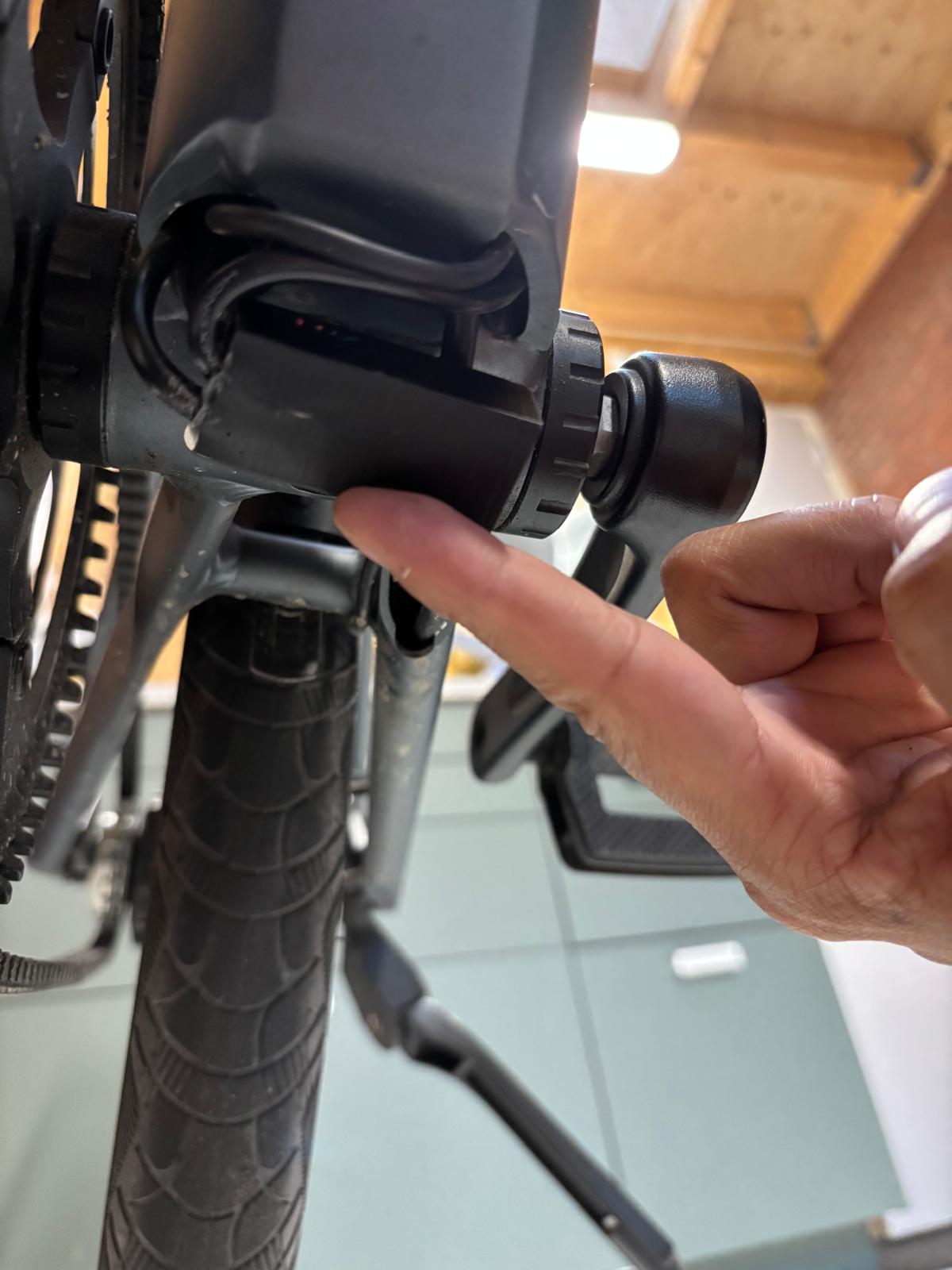

Push the cables as far back into the frame as possible. Place the Speedbox sideways in the available space under the crankcase.
Step 7
Reattach the cover

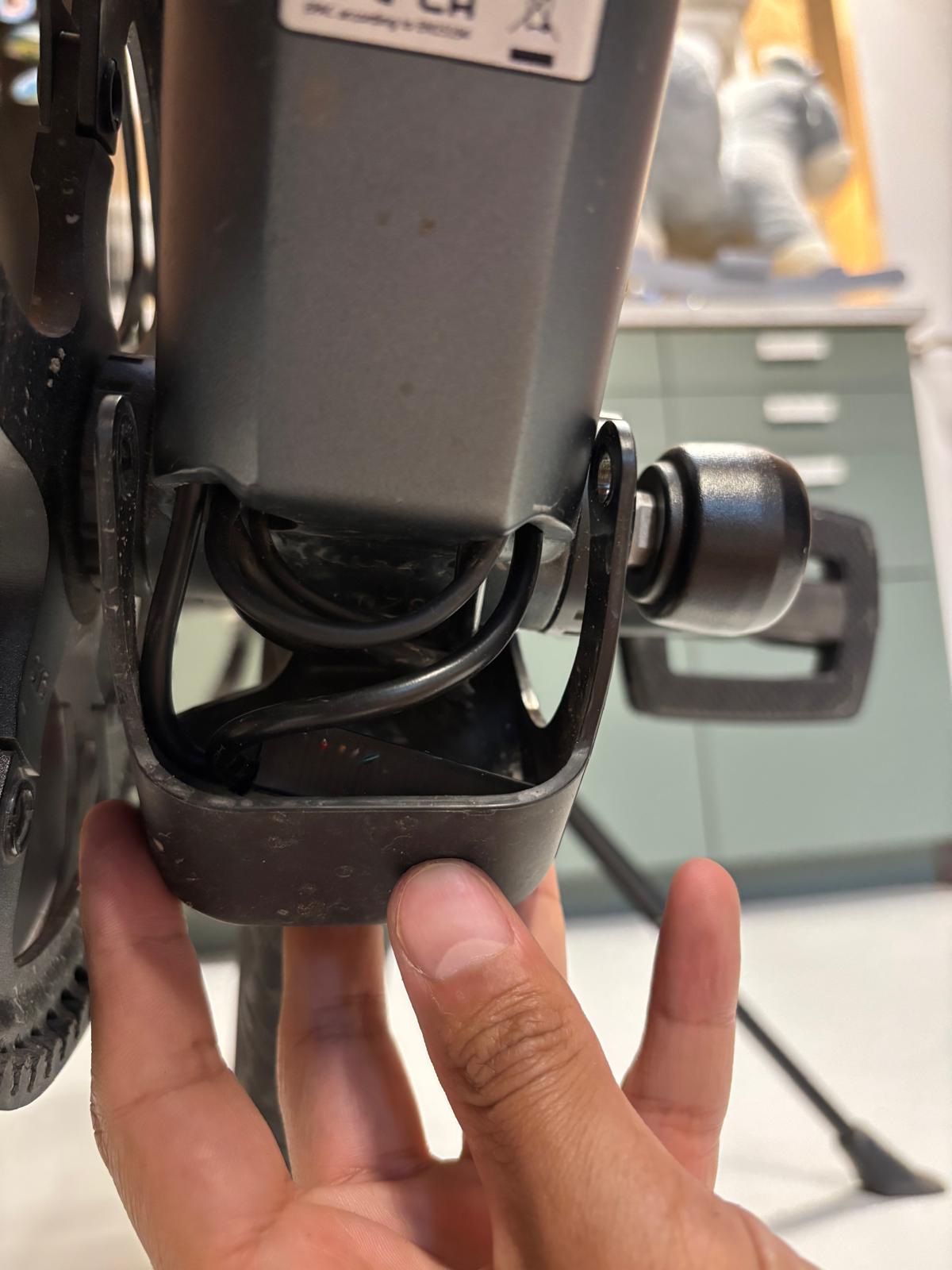

Place the cover back over the cables and screw the cover in place.
Step 8
Activate the Speedbox
Turn the bike on. Press and hold the down arrow on your display. Continue holding it until you feel the bike "wants to move forward" and hear an electrical sound coming from the motor. Your Speedbox is now activated!
