Step by step guide to speedhack your Tenways CGO600
There are two ways to install the Smoothway speedbox: a quick and easy 1-minute setup on your handlebar or a more secure, theft-resistant installation under the crank, which takes about 15 minutes. Choose the option that works best for you!
Easy 1 minute handlebar installation
The handlebar installation is the simplest method. If you don’t leave your bike in public areas often, this is a great option. Just keep in mind, it’s easier for thieves to tamper with it.
Step 1
Preparation

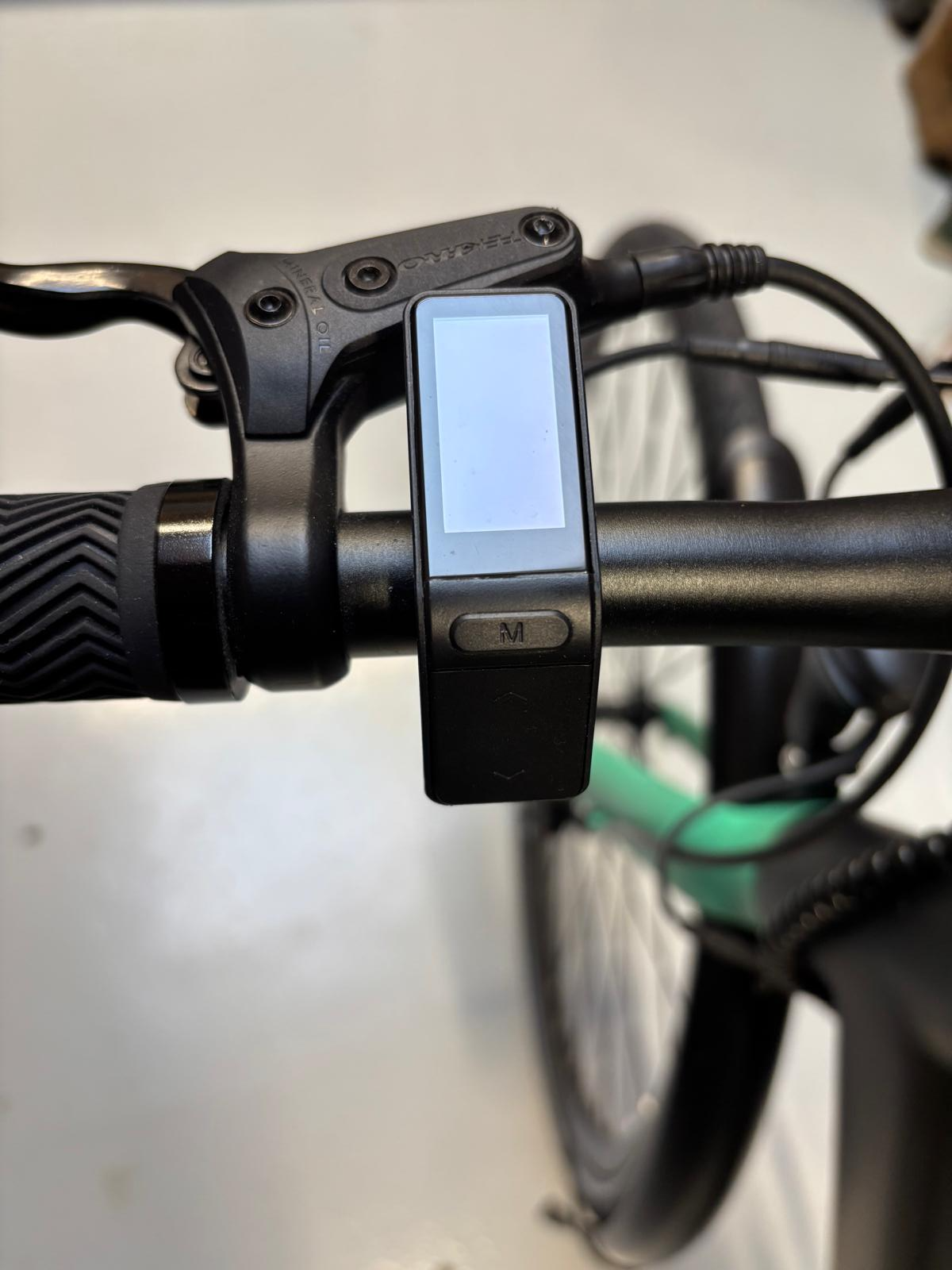

Make sure your Tenways CGO600 is turned off.
Step 2

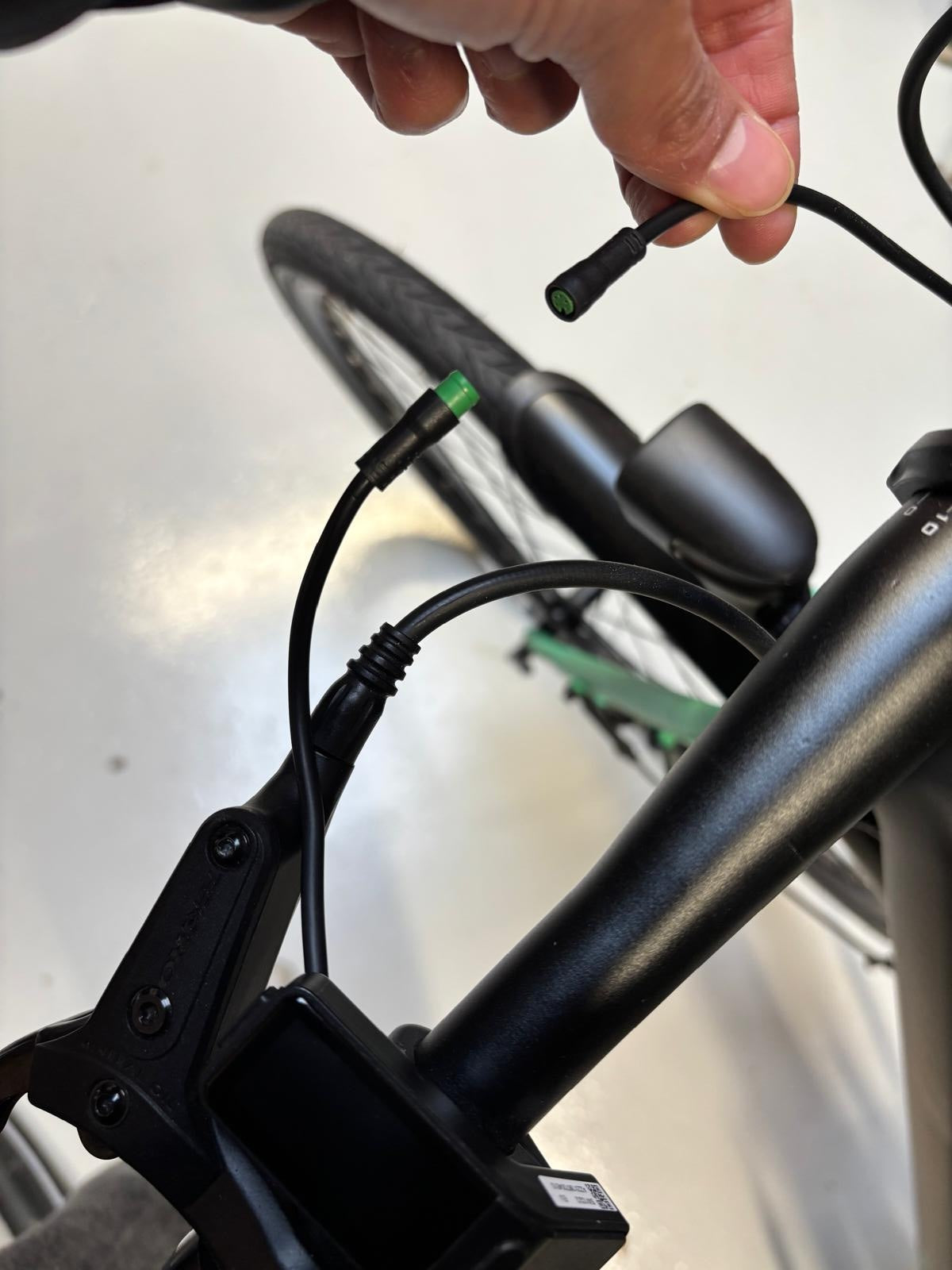

Disconnect the cables from your display
Don’t worry, it might take a little force, but just gently pull the cables out. It’s normal, so no need to be scared!
Step 3
Connect the Smoothway Speedbox

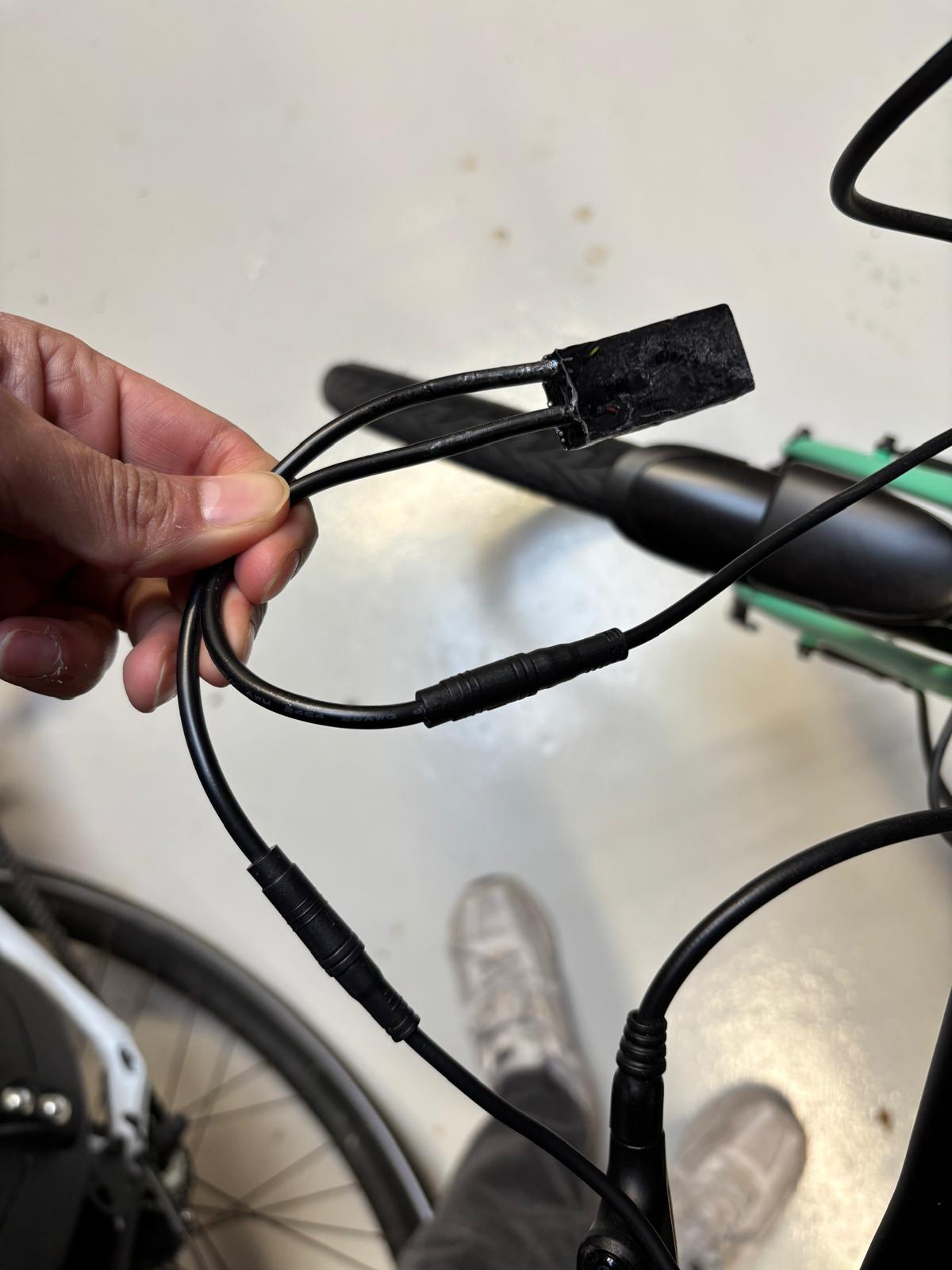

There’s only one way to connect it. The male connector of the speedbox goes into the female connector on the bike. Then, the male connector from the bike plugs into the female connector on the speedbox. It's simple, just follow the arrows on the connectors to line them up the right way!
Use some small cable ties (or tyraps, tie wraps... whatever you like to call them! 😉) to secure everything in place.
Step 4
Activating the speedbox

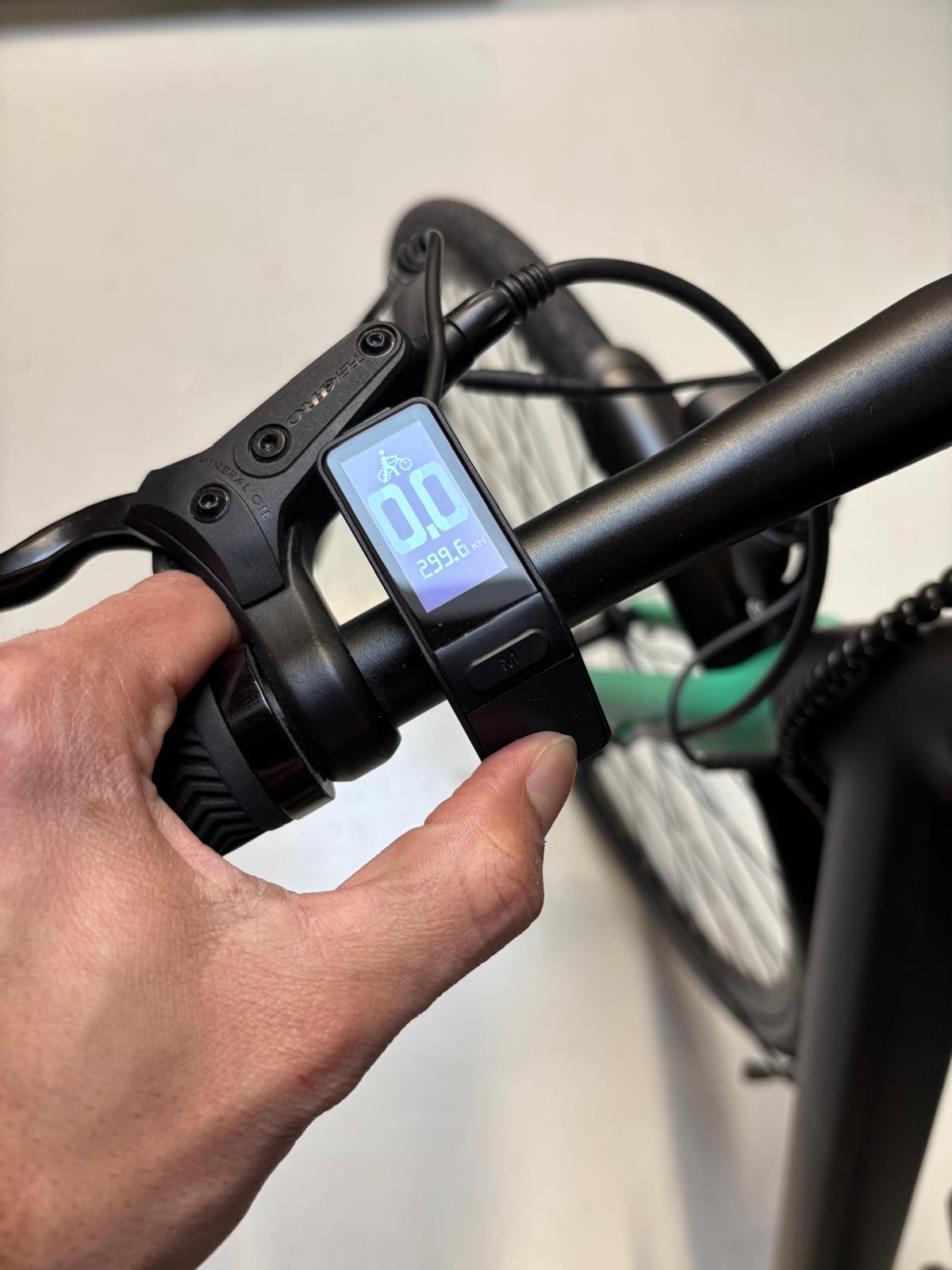

To activate the speedbox, turn on your bike. Once it's powered on, press and hold the down arrow button on your display to activate walk assist mode. The speedbox is now activated! Enjoy your faster rides ;).
Note: Walk mode will no longer work with a speedbox installed, and you’ll need to activate the speedbox every time you turn on your bike.
